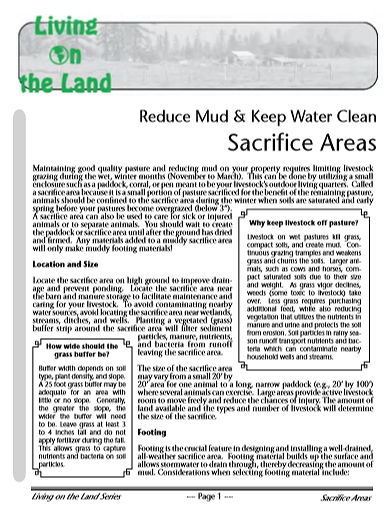

Reduce Mud & Keep Water Clean

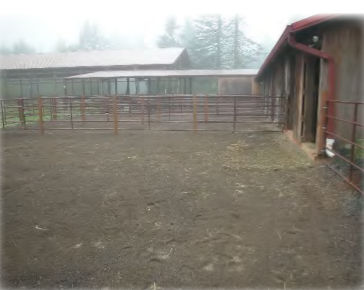

Maintaining good quality pasture and reducing mud on your property requires limiting livestock grazing during the wet, winter months (November to March). This can be done by utilizing a small enclosure such as a paddock, corral, or pen meant to be your livestock’s outdoor living quarters. Called a sacriﬁce area because it is a small portion of pasture sacriﬁced for the beneﬁt of the remaining pasture, animals should be conﬁned to the sacriﬁce area during the winter when soils are saturated and early spring before your pastures become overgrazed (below 3”). A sacriﬁce area can also be used to care for sick or injured animals or to separate animals. You should wait to create the paddock or sacriﬁce area until after the ground has dried and ﬁrmed. Any materials added to a muddy sacriﬁce area will only make muddy footing materials!
Location & Size
Locate the sacriﬁce area on high ground to improve drainage and prevent ponding. Locate the sacriﬁce area near the barn and manure storage to facilitate maintenance and caring for your livestock. To avoid contaminating nearby water sources, avoid locating the sacriﬁce area near wetlands, streams, ditches, and wells. Planting a vegetated (grass) buffer strip around the sacriﬁce area will ﬁlter sediment particles, manure, nutrients, and bacteria from runoff leaving the sacriﬁce area.
The size of the sacriﬁce area may vary from a small 20’ by 20’ area for one animal to a long, narrow paddock (e.g., 20’ by 100’) where several animals can exercise. Large areas provide active livestock room to move freely and reduce the chances of injury. The amount of land available and the types and number of livestock will determine the size of the sacriﬁce.
Footing is the crucial feature in designing and installing a well-drained, all-weather sacriﬁce area. Footing material builds up the surface and allows stormwater to drain through, thereby decreasing the amount of mud. Considerations when selecting footing material include:
- Is it a suitable surface for my animals and property?
- Is it a safe surface for my animals to run, stand, and lay down on?
- Can I easily pick manure from the footing material?
- What is the availability and cost?

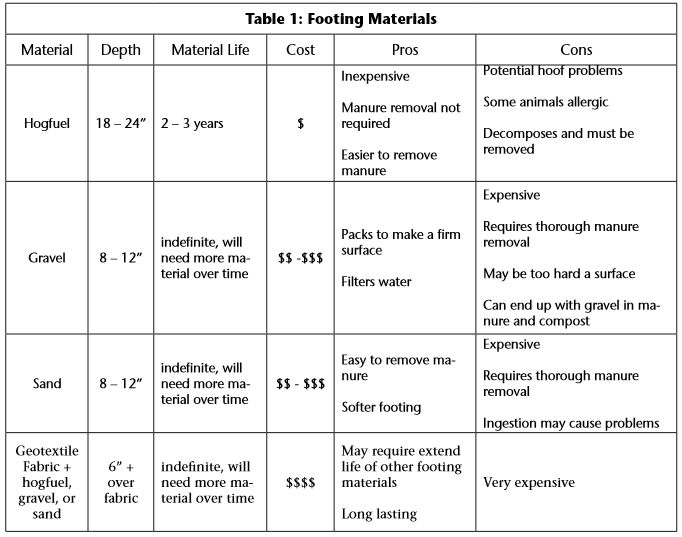

Each type of footing has advantages and disadvantages as outlined in Table 1. It pays to spend some time researching and selecting what works best for your situation. Many livestock owners ﬁnd that combinations of the footings work best, often with gravel and/or sand covered by hogfuel.
Economical: Hogfuel – Typically comprised of bark pieces from evergreen tress such as Douglas ﬁr, pine or cedar, hogfuel packs down and decomposes over time. This requires periodic replacement. Hogfuel locks up some of the nitrogen and urea in manure. As it decomposes, microorganisms breakdown the hogfuel and in the process, convert the nitrogen and other nutrients into a more stable form that releases over a longer period of time than straight manure. Inspect hogfuel before you purchase since there can be a lot of variation in what constitutes hogfuel. Material with mostly small pieces will break down quickly, while larger pieces will make it difﬁcult to remove manure. Installing 12 – 24” of hogfuel with ﬂakes of straw or hay underneath and regularly removing manure will extend the life of the material. Any incidental pieces of wood that are removed with manure can be composted. Hogfuel can be a relatively inexpensive footing for sacriﬁce areas and other heavy use areas such as feeding and watering areas, gates, and paths.
Intermediate: Gravel and Sand. When properly installed and maintained, gravel and sand last longer than hogfuel, but are more expensive. Types and sizes of sand and gravel vary. Footing material most often used is an 812” layer of 3/8” minus to 5/8” minus crushed gravel. Additional gravel needs to be added over time if it is applied directly to soil. Laying down geotextile fabric will keep the gravel for subsiding, but signiﬁcantly increases costs. Gravel forms a ﬁrm footing for high trafﬁc areas, such as entrances, gateways and walkways, while hogfuel can be used in less trafﬁcked areas.
Using coarse sand facilitates better drainage. Since feeding animals on sand may cause digestive tract problems, animals should be fed elsewhere. Careful manure removal from sand and gravel footings is extremely important as manure particles will form a barrier to water percolation over time.
Deluxe: Geotextile Fabric with gravel, sand and/or hogfuel. Geotextile fabric can be used with any of the above footings to improve drainage, separate layers and prevent materials from migrating into the soil. Made of woven plastic and often used in road and other construction projects, the fabric allows water to pass through, but not sand or silt. For best performance, use this fabric on a level surface and covered with a minimum of 6 inches of footing, such as gravel. Applying footing material over the fabric at a greater depth will ensure the animals do not dig down to the fabric and tear it up. All edges must overlap at least 6” and outer edges of the fabric should be well covered. One common footing material combination covers the fabric with 6” of gravel, followed by 6” of sand, and topped with a layer of hogfuel. Landscape fabric may substitute for geotextile fabric, but deteriorates faster and may need to be replaced.
Livestock can be hard on fences, so it is important to select a sturdy safe fencing for your sacriﬁce area. Be sure there are no protruding objects that could harm livestock, such as bolt ends or nails. Low building overhangs and roof corners may also pose a danger to livestock. Gates need to be large enough to accommodate farm equipment and deliveries of footing materials, feed, and hay.
Minimizing water runoff through the sacriﬁce area is important to prolong the life of footing materials and keep manure out of the runoff. Install gutters on barns or sheds to divert rainwater away from the sacriﬁce area. To ensure adequate drainage, slightly slope the sacrifice area. To reduce the amount of contamination to runoff from the sacriﬁce area itself, place a vegetated ﬁlter strip or swale along the downhill side to collect and ﬁlter runoff. French drains, swales, and berms can be utilized to divert upslope runoff around sacriﬁce areas.
Your new sacriﬁce area will be an integral part of any pasture management plan. Use it during the grazing season to allow pasture to recover and prevent overgrazing. During the winter, keep your animals off saturated pasture soils by using this area as your animals’ outdoor living area. This will limit compaction and maintain healthy pastures.
How to Design a Riparian Buffer for Agricultural Land
